Brand Name : Hwalon
Model Number : PR4
Certification : CE UL
Place of Origin : CHINA
MOQ : 1000pcs
Price : by negotiation
Payment Terms : T/T, Western Union
Supply Ability : 100,000pcs/month
Delivery Time : 7-10 working days
Packaging Details : 100pcs/carton
Power : 800-2500W
Rated voltage : 50-270v
Resistance : 8-3500ohm
Application : Home Applicance
Heat Sink : Aluminum welding sink
Size : Custom-made
Chinese Manufacturer 1500W 220V Electrical PTC Heaters for fan heater
Features:
1. It is safe.
2. It has high power.
3. It has high reliability.
4. It is automatic temperature control
5. It doesn't turn to red or get fire when it is working.
6. It uses wide range of ambient temperature.
7. It can be manufactured to have different fixed temperatures at which the dramatic resistance change take place...
8. Even with the regard to voltage changes, the constant temperature mechanism will be effective.
9. It can be an effective low cost solution.
10. It has a virtually unlimited service life, and do not generate RFI noise.
11. Dynamic heating output and self-regulating function in correlation to the ambient temperature.
Sheath Material: Aluminium
Power: customized( (800W-2500W)
Power tolerance: -5%-0%
Voltage: customized
Resistance wire: ceramic
Size&Diamension: Customized
Leakage current is less than 0.5mA
Hi-pot (AC)test:3750V AC/2 seconds
Finsish type:the heating element only or the assembly of heating element,
plastic rack,lead wire,temperature controller and fuse protector.
Application:
· heating board
· Air-heating, wind-warming equipment, air-conditioner
· Physical treatment, massage apparatus, biology heating
· mosquito-driving apparatus
· water-boiling equipment
· shoe-drying apparatus
· hair curler, hair straightner
Specifications:
no. | part No. | resistance | surf. temp. | max voltage | length | width | thickness |
1 | H4PR140RA16K100 | 7-20 | 100 | 20 | 16 | 11 | 2 |
2 | H4PR102RA19K100 | 600-1500 | 100 | 270 | 16 | 11 | 2.5 |
3 | H4PR142RA19K230 | 800-2000 | 230 | 270 | 19 | 12 | 2.2 |
4 | H4PR102RA20K110 | 500-1500 | 110 | 270 | 23.5 | 10 | 2.2 |
Dimentions:
· 5×4mm~35×20mm
· Shapes: square, round, ring
· As shown in detailed pictures
· Customized
Typical Application:
1 | Ceramic heater fan, hair dryer, hand dryer, clothes dryer, dish dryer |
2 | Coffee makers, steam irons, cooking devices, facial sauna, humidifier |
3 | Physical treatment, massage apparatus, biology heating |
4 | Mosquito repellent, liquid warmer, control devices |
![]() |

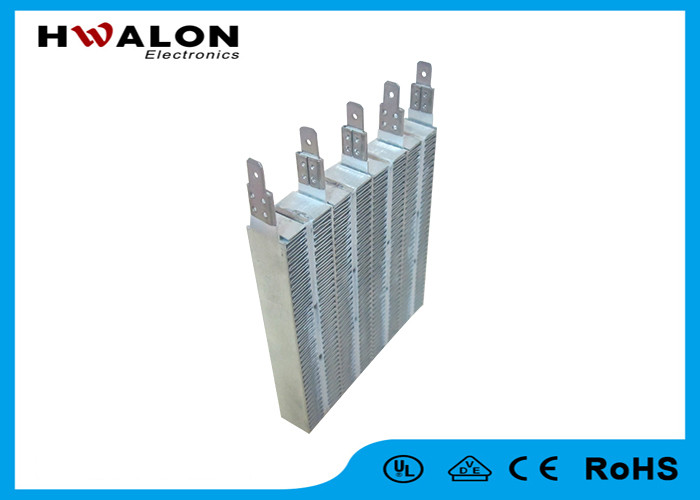

1500W 220V Electrical PTC Air Heaters Aluminum Welding Sink 8 - 3500ohm Resistance Images |
